System Description

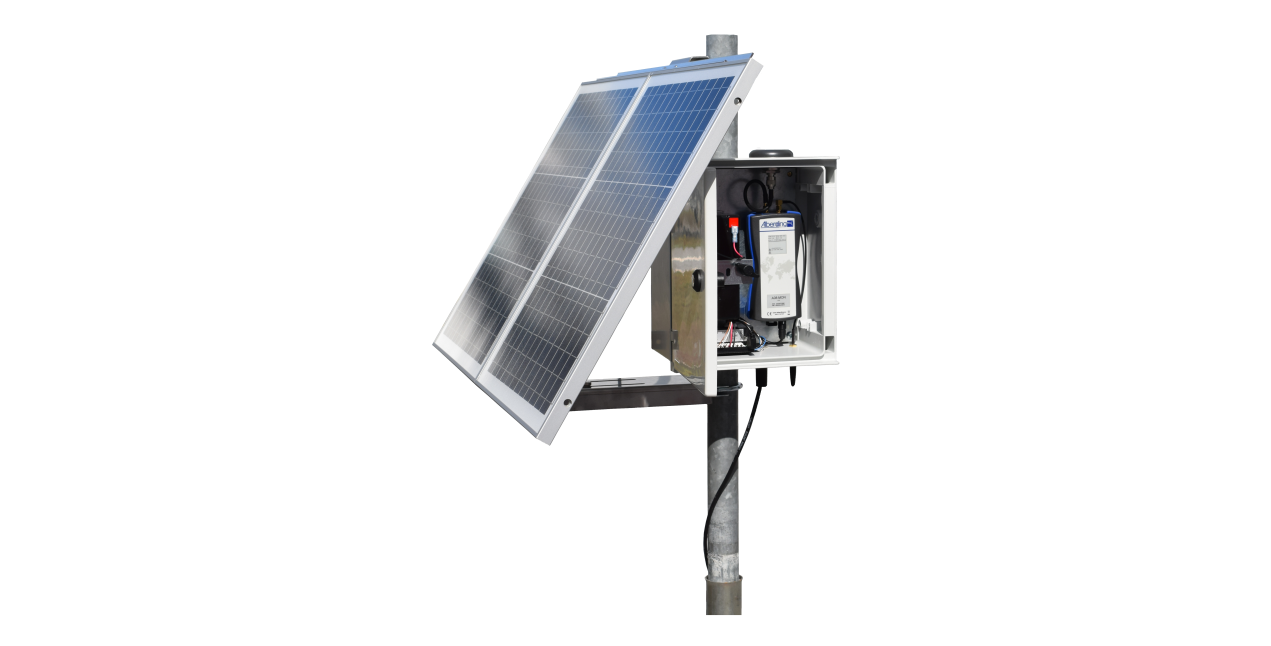

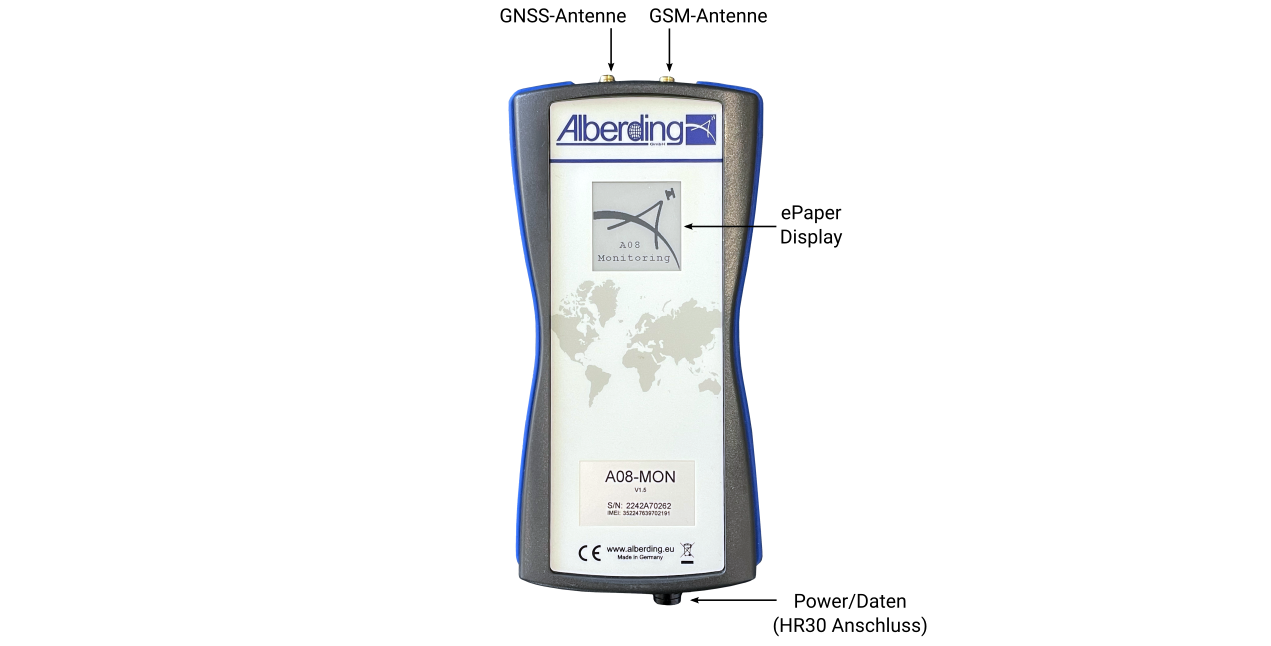

The autonomous A08 monitoring system consists of an A08-MON sensor with external GNSS antenna, a solar power supply with batteries and a robust weather protection box. The solar power supply was designed in such a way that the A08-MON is sufficiently supplied with power even in winter.

The weather protection box comes with connectors for the solar panels (2 x 30W), the external GSM antenna and the GNSS antenna. For the connection of external sensors (such as a weather station or geotechnical sensors) further connectors can be added. To distinguish displacements from rod tilts, a tilt sensor is integrated in the A08-MON.

The combination of autonomous field sensors with automated data analysis on a server (AMoS) has set new standards in GNSS monitoring. Especially in times of a shortage of skilled workforce, the autonomous A08 monitoring system can replace the time-consuming levelling of individual points.

A07-MON Key features:

  • Easy installation through pre-configured data transfer
  • Robust design with weather protection box and sealed connectors
  • Autonomous operation with solar power supply
  • Common storage and transfer of GNSS raw data and external sensor measurement data
  • Automated central data analysis with the AMoS software
