System Description

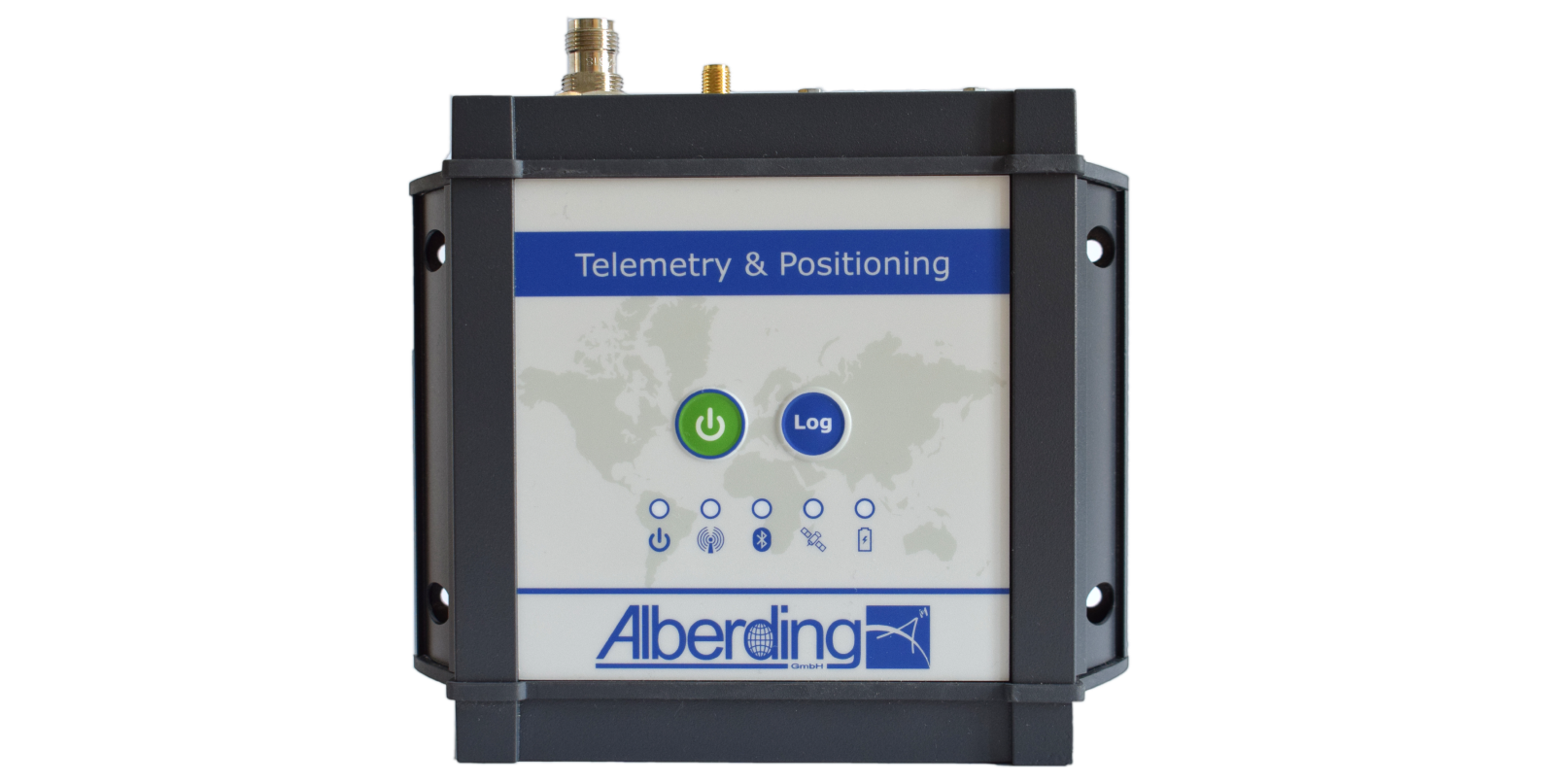

The Alberding A10-RTK sensor is designed for precise satellite positioning system applications. Based on a scalable GNSS L1/L2 board, the A10-RTK supports high performance heading determination using all four GNSS systems.

In addition to an integrated Cortex pro­ces­sor, the A10-RTK sensor has a Linux board, which is used for the integration of ap­pli­ca­tion software. Sensor fusion, data con­ver­sion, geofencing or geomonitoring al­go­rithms can be run directly on the A10 sensor, so that, for example, alarms can be sent directly from the A10-RTK.

The multi-port connector of the A10-RTK provides various interfaces (serial, USB, Ethernet, CAN bus, etc.) that can be used, for example, for integrating the system on agricultural and construction machinery. RTK positioning, project data transmission and machine data collection - one system for many applications.

A10-RTK Key features:

  • Dual-frequency GNSS board.
  • Integrated storage of RTK po­si­tions and raw data.
  • Server/Client communication (LTE module).
  • Integrated Bluetooth module.
  • Integrated Cortex processor for data management.
  • Embedded PC with Linux op­er­at­ing system (optional).
  • Integration of application soft­ware.
  • Customisable configuration.
  • Automatic data transfer.
  • Autonomous operation through preconfiguration.
